TIMKEN BEARINGS
TAPERED ROLLER BEARINGS

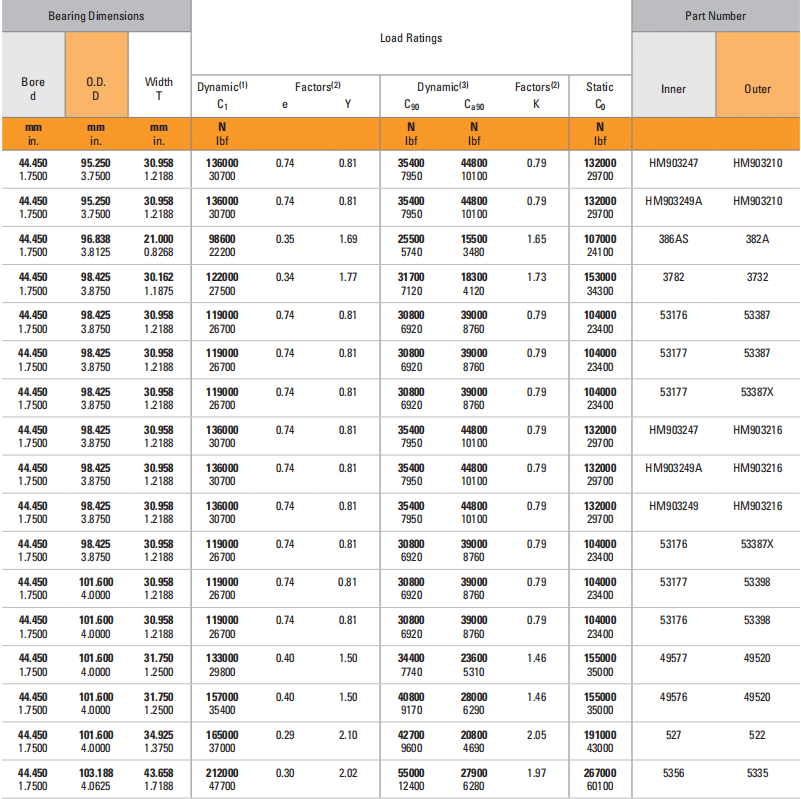

| Bearing Dimensions | Load Ratings | Part Number | |||||||||
|
Bore d |
O.D. D |
Width T |
Inner |
Outer | |||||||
| Dynamic(1) Factors(2) C1 e Y | Dynamic(3) Factors(2) C90 Ca90 K | Static C0 | |||||||||
| mm in. | mm in. | mm in. | N lbf | N lbf | N lbf | N lbf | |||||
| 44.450 1.7500 | 95.250 3.7500 | 30.958 1.2188 | 136000 30700 | 0.74 | 0.81 | 35400 7950 | 44800 10100 | 0.79 | 132000 29700 | HM903247 | HM903210 |
| 44.450 1.7500 | 95.250 3.7500 | 30.958 1.2188 | 136000 30700 | 0.74 | 0.81 | 35400 7950 | 44800 10100 | 0.79 | 132000 29700 | HM903249A | HM903210 |
| 44.450 1.7500 | 96.838 3.8125 | 21.000 0.8268 | 98600 22200 | 0.35 | 1.69 | 25500 5740 | 15500 3480 | 1.65 | 107000 24100 | 386AS | 382A |
| 44.450 1.7500 | 98.425 3.8750 | 30.162 1.1875 | 122000 27500 | 0.34 | 1.77 | 31700 7120 | 18300 4120 | 1.73 | 153000 34300 | 3782 | 3732 |
| 44.450 1.7500 | 98.425 3.8750 | 30.958 1.2188 | 119000 26700 | 0.74 | 0.81 | 30800 6920 | 39000 8760 | 0.79 | 104000 23400 | 53176 | 53387 |
| 44.450 1.7500 | 98.425 3.8750 | 30.958 1.2188 | 119000 26700 | 0.74 | 0.81 | 30800 6920 | 39000 8760 | 0.79 | 104000 23400 | 53177 | 53387 |
| 44.450 1.7500 | 98.425 3.8750 | 30.958 1.2188 | 119000 26700 | 0.74 | 0.81 | 30800 6920 | 39000 8760 | 0.79 | 104000 23400 | 53177 | 53387X |
| 44.450 1.7500 | 98.425 3.8750 | 30.958 1.2188 | 136000 30700 | 0.74 | 0.81 | 35400 7950 | 44800 10100 | 0.79 | 132000 29700 | HM903247 | HM903216 |
| 44.450 1.7500 | 98.425 3.8750 | 30.958 1.2188 | 136000 30700 | 0.74 | 0.81 | 35400 7950 | 44800 10100 | 0.79 | 132000 29700 | HM903249A | HM903216 |
| 44.450 1.7500 | 98.425 3.8750 | 30.958 1.2188 | 136000 30700 | 0.74 | 0.81 | 35400 7950 | 44800 10100 | 0.79 | 132000 29700 | HM903249 | HM903216 |
| 44.450 1.7500 | 98.425 3.8750 | 30.958 1.2188 | 119000 26700 | 0.74 | 0.81 | 30800 6920 | 39000 8760 | 0.79 | 104000 23400 | 53176 | 53387X |
| 44.450 1.7500 | 101.600 4.0000 | 30.958 1.2188 | 119000 26700 | 0.74 | 0.81 | 30800 6920 | 39000 8760 | 0.79 | 104000 23400 | 53177 | 53398 |
| 44.450 1.7500 | 101.600 4.0000 | 30.958 1.2188 | 119000 26700 | 0.74 | 0.81 | 30800 6920 | 39000 8760 | 0.79 | 104000 23400 | 53176 | 53398 |
| 44.450 1.7500 | 101.600 4.0000 | 31.750 1.2500 | 133000 29800 | 0.40 | 1.50 | 34400 7740 | 23600 5310 | 1.46 | 155000 35000 | 49577 | 49520 |
| 44.450 1.7500 | 101.600 4.0000 | 31.750 1.2500 | 157000 35400 | 0.40 | 1.50 | 40800 9170 | 28000 6290 | 1.46 | 155000 35000 | 49576 | 49520 |
| 44.450 1.7500 | 101.600 4.0000 | 34.925 1.3750 | 165000 37000 | 0.29 | 2.10 | 42700 9600 | 20800 4690 | 2.05 | 191000 43000 | 527 | 522 |
| 44.450 1.7500 | 103.188 4.0625 | 43.658 1.7188 | 212000 47700 | 0.30 | 2.02 | 55000 12400 | 27900 6280 | 1.97 | 267000 60100 | 5356 | 5335 |
