TIMKEN BEARINGS
TAPERED ROLLER BEARINGS

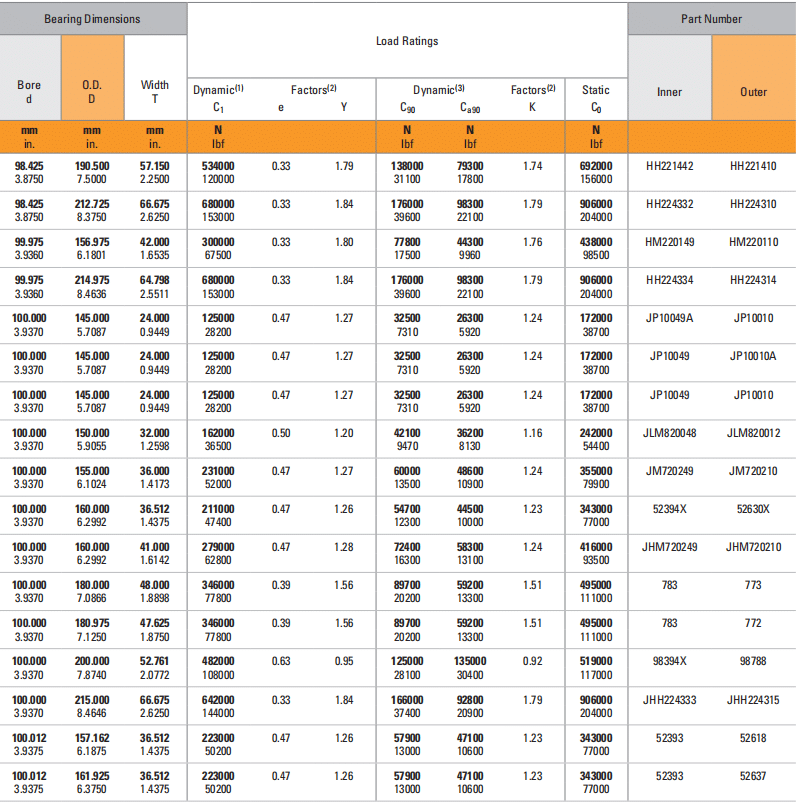

| Bearing Dimensions | Load Ratings | Part Number | |||||||||
|
Bore d |
O.D. D |
Width T |
Inner |
Outer | |||||||
| Dynamic(1) Factors(2) C1 e Y | Dynamic(3) Factors(2) C90 Ca90 K | Static C0 | |||||||||
| mm in. | mm in. | mm in. | N lbf | N lbf | N lbf | N lbf | |||||
| 98.425 3.8750 | 190.500 7.5000 | 57.150 2.2500 | 534000 120000 | 0.33 | 1.79 | 138000 31100 | 79300 17800 | 1.74 | 692000 156000 | HH221442 | HH221410 |
| 98.425 3.8750 | 212.725 8.3750 | 66.675 2.6250 | 680000 153000 | 0.33 | 1.84 | 176000 39600 | 98300 22100 | 1.79 | 906000 204000 | HH224332 | HH224310 |
| 99.975 3.9360 | 156.975 6.1801 | 42.000 1.6535 | 300000 67500 | 0.33 | 1.80 | 77800 17500 | 44300 9960 | 1.76 | 438000 98500 | HM220149 | HM220110 |
| 99.975 3.9360 | 214.975 8.4636 | 64.798 2.5511 | 680000 153000 | 0.33 | 1.84 | 176000 39600 | 98300 22100 | 1.79 | 906000 204000 | HH224334 | HH224314 |
| 100.000 3.9370 | 145.000 5.7087 | 24.000 0.9449 | 125000 28200 | 0.47 | 1.27 | 32500 7310 | 26300 5920 | 1.24 | 172000 38700 | JP10049A | JP10010 |
| 100.000 3.9370 | 145.000 5.7087 | 24.000 0.9449 | 125000 28200 | 0.47 | 1.27 | 32500 7310 | 26300 5920 | 1.24 | 172000 38700 | JP10049 | JP10010A |
| 100.000 3.9370 | 145.000 5.7087 | 24.000 0.9449 | 125000 28200 | 0.47 | 1.27 | 32500 7310 | 26300 5920 | 1.24 | 172000 38700 | JP10049 | JP10010 |
| 100.000 3.9370 | 150.000 5.9055 | 32.000 1.2598 | 162000 36500 | 0.50 | 1.20 | 42100 9470 | 36200 8130 | 1.16 | 242000 54400 | JLM820048 | JLM820012 |
| 100.000 3.9370 | 155.000 6.1024 | 36.000 1.4173 | 231000 52000 | 0.47 | 1.27 | 60000 13500 | 48600 10900 | 1.24 | 355000 79900 | JM720249 | JM720210 |
| 100.000 3.9370 | 160.000 6.2992 | 36.512 1.4375 | 211000 47400 | 0.47 | 1.26 | 54700 12300 | 44500 10000 | 1.23 | 343000 77000 | 52394X | 52630X |
| 100.000 3.9370 | 160.000 6.2992 | 41.000 1.6142 | 279000 62800 | 0.47 | 1.28 | 72400 16300 | 58300 13100 | 1.24 | 416000 93500 | JHM720249 | JHM720210 |
| 100.000 3.9370 | 180.000 7.0866 | 48.000 1.8898 | 346000 77800 | 0.39 | 1.56 | 89700 20200 | 59200 13300 | 1.51 | 495000 111000 | 783 | 773 |
| 100.000 3.9370 | 180.975 7.1250 | 47.625 1.8750 | 346000 77800 | 0.39 | 1.56 | 89700 20200 | 59200 13300 | 1.51 | 495000 111000 | 783 | 772 |
| 100.000 3.9370 | 200.000 7.8740 | 52.761 2.0772 | 482000 108000 | 0.63 | 0.95 | 125000 28100 | 135000 30400 | 0.92 | 519000 117000 | 98394X | 98788 |
| 100.000 3.9370 | 215.000 8.4646 | 66.675 2.6250 | 642000 144000 | 0.33 | 1.84 | 166000 37400 | 92800 20900 | 1.79 | 906000 204000 | JHH224333 | JHH224315 |
| 100.012 3.9375 | 157.162 6.1875 | 36.512 1.4375 | 223000 50200 | 0.47 | 1.26 | 57900 13000 | 47100 10600 | 1.23 | 343000 77000 | 52393 | 52618 |
| 100.012 3.9375 | 161.925 6.3750 | 36.512 1.4375 | 223000 50200 | 0.47 | 1.26 | 57900 13000 | 47100 10600 | 1.23 | 343000 77000 | 52393 | 52637 |
