TIMKEN BEARINGS
TAPERED ROLLER BEARINGS

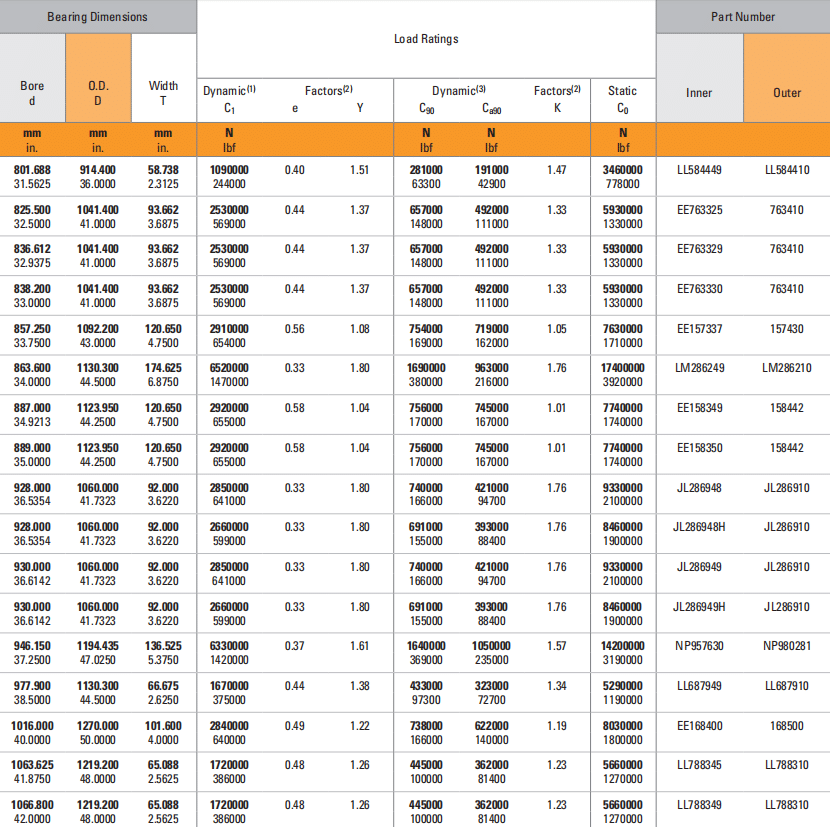

| Bearing Dimensions | Load Ratings | Part Number | |||||||||
|
Bore d |
O.D. D |
Width T |
Inner |
Outer | |||||||
| Dynamic(1) Factors(2) C1 e Y | Dynamic(3) Factors(2) C90 Ca90 K | Static C0 | |||||||||
| mm in. | mm in. | mm in. | N lbf | N lbf | N lbf | N lbf | |||||
| 801.688 | 914.400 | 58.738 | 1090000 | 0.40 | 1.51 | 281000 | 191000 | 1.47 | 3460000 | LL584449 | LL584410 |
| 31.5625 | 36.0000 | 2.3125 | 244000 | 63300 | 42900 | 778000 | |||||
| 825.500 | 1041.400 | 93.662 | 2530000 | 0.44 | 1.37 | 657000 | 492000 | 1.33 | 5930000 | EE763325 | 763410 |
| 32.5000 | 41.0000 | 3.6875 | 569000 | 148000 | 111000 | 1330000 | |||||
| 836.612 | 1041.400 | 93.662 | 2530000 | 0.44 | 1.37 | 657000 | 492000 | 1.33 | 5930000 | EE763329 | 763410 |
| 32.9375 | 41.0000 | 3.6875 | 569000 | 148000 | 111000 | 1330000 | |||||
| 838.200 | 1041.400 | 93.662 | 2530000 | 0.44 | 1.37 | 657000 | 492000 | 1.33 | 5930000 | EE763330 | 763410 |
| 33.0000 | 41.0000 | 3.6875 | 569000 | 148000 | 111000 | 1330000 | |||||
| 857.250 | 1092.200 | 120.650 | 2910000 | 0.56 | 1.08 | 754000 | 719000 | 1.05 | 7630000 | EE157337 | 157430 |
| 33.7500 | 43.0000 | 4.7500 | 654000 | 169000 | 162000 | 1710000 | |||||
| 863.600 | 1130.300 | 174.625 | 6520000 | 0.33 | 1.80 | 1690000 | 963000 | 1.76 | 17400000 | LM286249 | LM286210 |
| 34.0000 | 44.5000 | 6.8750 | 1470000 | 380000 | 216000 | 3920000 | |||||
| 887.000 | 1123.950 | 120.650 | 2920000 | 0.58 | 1.04 | 756000 | 745000 | 1.01 | 7740000 | EE158349 | 158442 |
| 34.9213 | 44.2500 | 4.7500 | 655000 | 170000 | 167000 | 1740000 | |||||
| 889.000 | 1123.950 | 120.650 | 2920000 | 0.58 | 1.04 | 756000 | 745000 | 1.01 | 7740000 | EE158350 | 158442 |
| 35.0000 | 44.2500 | 4.7500 | 655000 | 170000 | 167000 | 1740000 | |||||
| 928.000 | 1060.000 | 92.000 | 2850000 | 0.33 | 1.80 | 740000 | 421000 | 1.76 | 9330000 | JL286948 | JL286910 |
| 36.5354 | 41.7323 | 3.6220 | 641000 | 166000 | 94700 | 2100000 | |||||
| 928.000 | 1060.000 | 92.000 | 2660000 | 0.33 | 1.80 | 691000 | 393000 | 1.76 | 8460000 | JL286948H | JL286910 |
| 36.5354 | 41.7323 | 3.6220 | 599000 | 155000 | 88400 | 1900000 | |||||
| 930.000 | 1060.000 | 92.000 | 2850000 | 0.33 | 1.80 | 740000 | 421000 | 1.76 | 9330000 | JL286949 | JL286910 |
| 36.6142 | 41.7323 | 3.6220 | 641000 | 166000 | 94700 | 2100000 | |||||
| 930.000 | 1060.000 | 92.000 | 2660000 | 0.33 | 1.80 | 691000 | 393000 | 1.76 | 8460000 | JL286949H | JL286910 |
| 36.6142 | 41.7323 | 3.6220 | 599000 | 155000 | 88400 | 1900000 | |||||
| 946.150 | 1194.435 | 136.525 | 6330000 | 0.37 | 1.61 | 1640000 | 1050000 | 1.57 | 14200000 | NP957630 | NP980281 |
| 37.2500 | 47.0250 | 5.3750 | 1420000 | 369000 | 235000 | 3190000 | |||||
| 977.900 | 1130.300 | 66.675 | 1670000 | 0.44 | 1.38 | 433000 | 323000 | 1.34 | 5290000 | LL687949 | LL687910 |
| 38.5000 | 44.5000 | 2.6250 | 375000 | 97300 | 72700 | 1190000 | |||||
| 1016.000 | 1270.000 | 101.600 | 2840000 | 0.49 | 1.22 | 738000 | 622000 | 1.19 | 8030000 | EE168400 | 168500 |
| 40.0000 | 50.0000 | 4.0000 | 640000 | 166000 | 140000 | 1800000 | |||||
| 1063.625 | 1219.200 | 65.088 | 1720000 | 0.48 | 1.26 | 445000 | 362000 | 1.23 | 5660000 | LL788345 | LL788310 |
| 41.8750 | 48.0000 | 2.5625 | 386000 | 100000 | 81400 | 1270000 | |||||
| 1066.800 | 1219.200 | 65.088 | 1720000 | 0.48 | 1.26 | 445000 | 362000 | 1.23 | 5660000 | LL788349 | LL788310 |
| 42.0000 | 48.0000 | 2.5625 | 386000 | 100000 | 81400 | 1270000 | |||||
