NSK BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

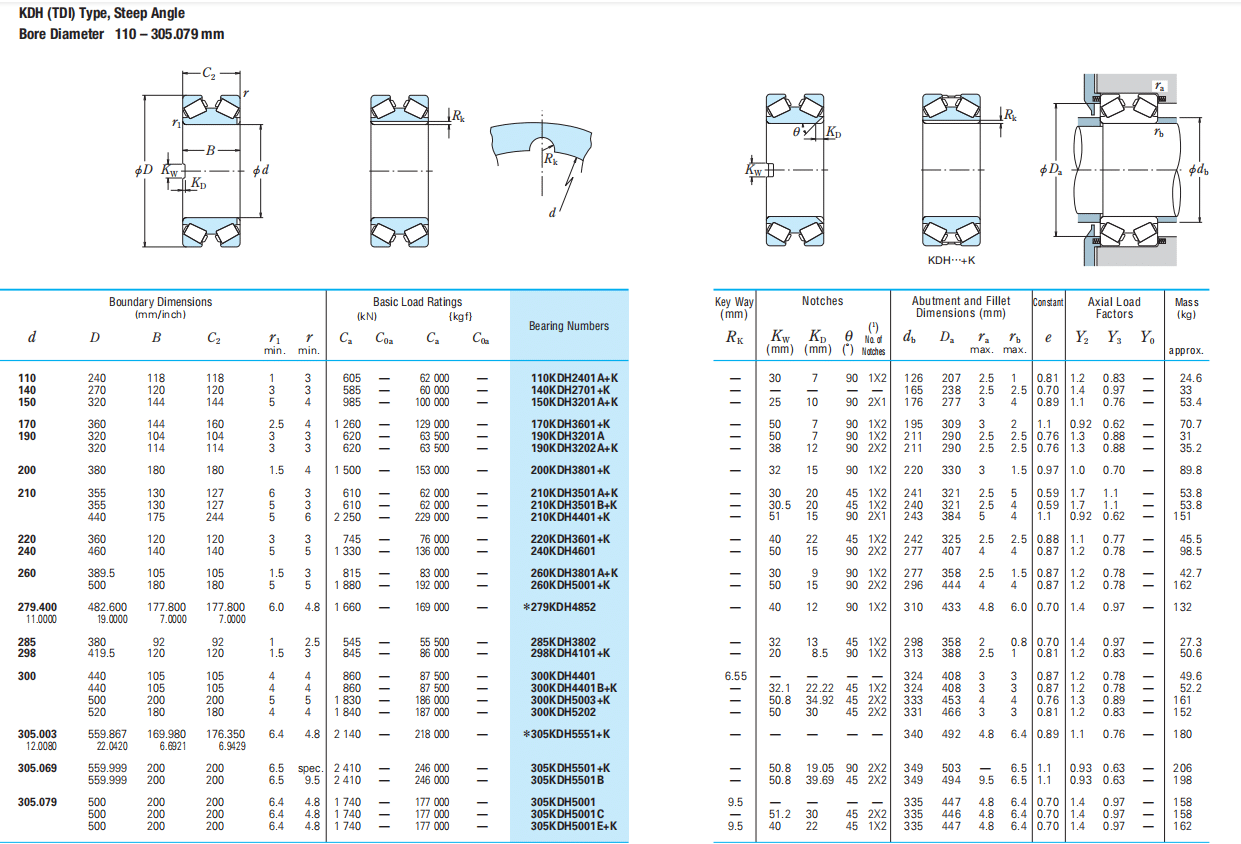

| Boundary Dimensions (mm/inch) d D B C2 | r1 min . | r min . | Basic Load Ratings (kN) {kgf} Ca C0a Ca C0a | Bearing Numbers | |||||||
| 110 | 240 | 118 | 118 | 1 | 3 | 605 | — | 62 000 | — | 110KDH2401A+K | |
| 140 | 270 | 120 | 120 | 3 | 3 | 585 | — | 60 000 | — | 140KDH2701+K | |
| 150 | 320 | 144 | 144 | 5 | 4 | 985 | — | 100 000 | — | 150KDH3201A+K | |
| 170 | 360 | 144 | 160 | 2.5 | 4 | 1 | 260 | — | 129 000 | — | 170KDH3601+K |
| 190 | 320 | 104 | 104 | 3 | 3 | 620 | — | 63 500 | — | 190KDH3201A | |
| 320 | 114 | 114 | 3 | 3 | 620 | — | 63 500 | — | 190KDH3202A+K | ||
| 200 | 380 | 180 | 180 | 1.5 | 4 | 1 | 500 | — | 153 000 | — | 200KDH3801+K |
| 210 | 355 | 130 | 127 | 6 | 3 | 610 | — | 62 000 | — | 210KDH3501A+K | |
| 355 | 130 | 127 | 5 | 3 | 610 | — | 62 000 | — | 210KDH3501B+K | ||
| 440 | 175 | 244 | 5 | 6 | 2 | 250 | — | 229 000 | — | 210KDH4401+K | |
| 220 | 360 | 120 | 120 | 3 | 3 | 745 | — | 76 000 | — | 220KDH3601+K | |
| 240 | 460 | 140 | 140 | 5 | 5 | 1 | 330 | — | 136 000 | — | 240KDH4601 |
| 260 | 389.5 | 105 | 105 | 1.5 | 3 | 815 | — | 83 000 | — | 260KDH3801A+K | |
| 500 | 180 | 180 | 5 | 5 | 1 | 880 | — | 192 000 | — | 260KDH5001+K | |
| 279.400 11.0000 | 482.600 19.0000 | 177.800 7.0000 | 177.800 7.0000 | 6.0 | 4.8 | 1 | 660 | — | 169 000 | — | *279KDH4852 |
| 285 | 380 | 92 | 92 | 1 | 2.5 | 545 | — | 55 500 | — | 285KDH3802 | |
| 298 | 419.5 | 120 | 120 | 1.5 | 3 | 845 | — | 86 000 | — | 298KDH4101+K | |
| 300 | 440 | 105 | 105 | 4 | 4 | 860 | — | 87 500 | — | 300KDH4401 | |
| 440 | 105 | 105 | 4 | 4 | 860 | — | 87 500 | — | 300KDH4401B+K | ||
| 500 | 200 | 200 | 5 | 5 | 1 | 830 | — | 186 000 | — | 300KDH5003+K | |
| 520 | 180 | 180 | 4 | 4 | 1 | 840 | — | 187 000 | — | 300KDH5202 | |
| 305.003 12.0080 | 559.867 22.0420 | 169.980 6.6921 | 176.350 6.9429 | 6.4 | 4.8 | 2 | 140 | — | 218 000 | — | *305KDH5551+K |
| 305.069 | 559.999 559.999 | 200 200 | 200 200 | 6.5 6.5 | spec 9.5 | 2 2 | 410 410 | — — | 246 000 246 000 | — — | 305KDH5501+K 305KDH5501B |
| 305.079 | 500 | 200 | 200 | 6.4 | 4.8 | 1 | 740 | — | 177 000 | — | 305KDH5001 |
| 500 | 200 | 200 | 6.4 | 4.8 | 1 | 740 | — | 177 000 | — | 305KDH5001C | |
| 500 | 200 | 200 | 6.4 | 4.8 | 1 | 740 | — | 177 000 | — | 305KDH5001E+K | |
