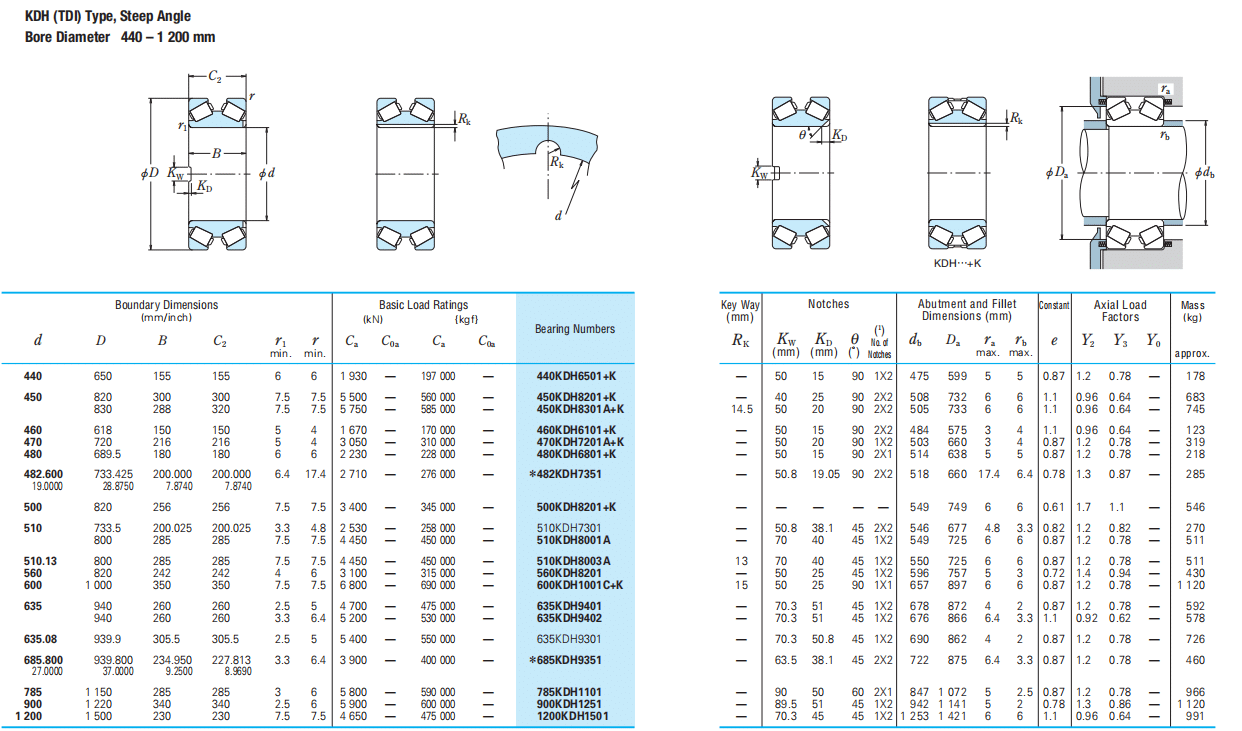

| Boundary Dimensions (mm/inch) d D B C2 | r1 min . | r min . | Basic Load Ratings (kN) {kgf} Ca C0a Ca C0a | Bearing Numbers | ||||||
| 440 | 650 | 155 | 155 | 6 | 6 | 1 930 | — | 197 000 | — | 440KDH6501+K |
| 450 | 820 | 300 | 300 | 7.5 | 7.5 | 5 500 | — | 560 000 | — | 450KDH8201+K |
| 830 | 288 | 320 | 7.5 | 7.5 | 5 750 | — | 585 000 | — | 450KDH8301A+K | |
| 460 | 618 | 150 | 150 | 5 | 4 | 1 670 | — | 170 000 | — | 460KDH6101+K |
| 470 | 720 | 216 | 216 | 5 | 4 | 3 050 | — | 310 000 | — | 470KDH7201A+K |
| 480 | 689.5 | 180 | 180 | 6 | 6 | 2 230 | — | 228 000 | — | 480KDH6801+K |
| 482.600 19.0000 | 733.425 28.8750 | 200.000 7.8740 | 200.000 7.8740 | 6.4 | 17.4 | 2 710 | — | 276 000 | — | *482KDH7351 |
| 500 | 820 | 256 | 256 | 7.5 | 7.5 | 3 400 | — | 345 000 | — | 500KDH8201+K |
| 510 | 733.5 | 200.025 | 200.025 | 3.3 | 4.8 | 2 530 | — | 258 000 | — | 510KDH7301 |
| 800 | 285 | 285 | 7.5 | 7.5 | 4 450 | — | 450 000 | — | 510KDH8001A | |
| 510.13 | 800 | 285 | 285 | 7.5 | 7.5 | 4 450 | — | 450 000 | — | 510KDH8003A |
| 560 | 820 | 242 | 242 | 4 | 6 | 3 100 | — | 315 000 | — | 560KDH8201 |
| 600 | 1 000 | 350 | 350 | 7.5 | 7.5 | 6 800 | — | 690 000 | — | 600KDH1001C+K |
| 635 | 940 | 260 | 260 | 2.5 | 5 | 4 700 | — | 475 000 | — | 635KDH9401 |
| 940 | 260 | 260 | 3.3 | 6.4 | 5 200 | — | 530 000 | — | 635KDH9402 | |
| 635.08 | 939.9 | 305.5 | 305.5 | 2.5 | 5 | 5 400 | — | 550 000 | — | 635KDH9301 |
| 685.800 27.0000 | 939.800 37.0000 | 234.950 9.2500 | 227.813 8.9690 | 3.3 | 6.4 | 3 900 | — | 400 000 | — | *685KDH9351 |
| 785 | 1 150 | 285 | 285 | 3 | 6 | 5 800 | — | 590 000 | — | 785KDH1101 |
| 900 | 1 220 | 340 | 340 | 2.5 | 6 | 5 900 | — | 600 000 | — | 900KDH1251 |
| 1 200 | 1 500 | 230 | 230 | 7.5 | 7.5 | 4 650 | — | 475 000 | — | 1200KDH1501 |
