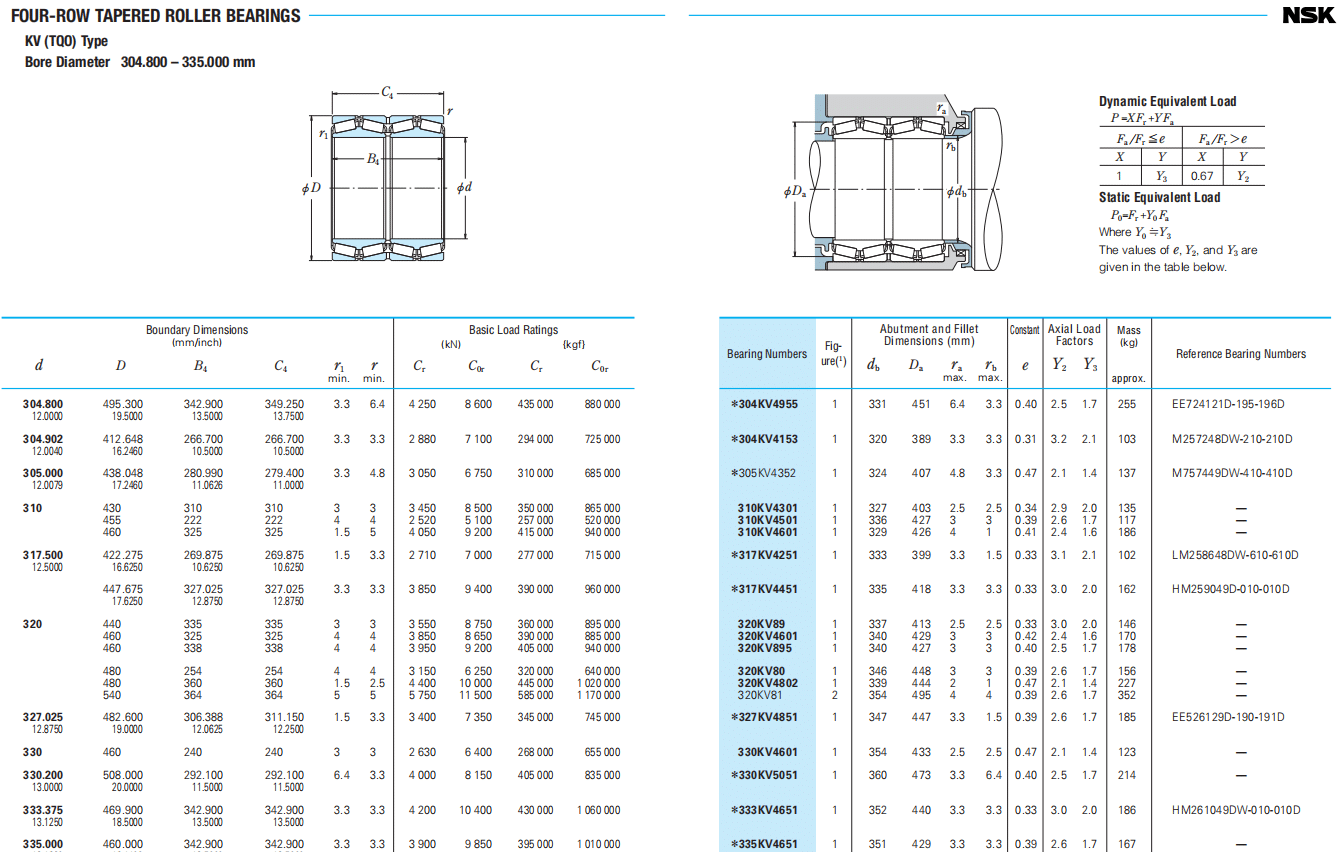

| Bearing Numbers | Fig- ure(1) | Abutment and Fillet Dimensions (mm) | Constant e | Axial Load Factors Y2 Y3 | Mass (kg) approx . | Reference Bearing Numbers | ||||
| b | Da | ra max . | rb max . | |||||||
| *304KV4955 | 1 | 331 451 6.4 3.3 | 0.40 | 2.5 | 1.7 | 255 | EE724121D- 195- 196D | |||
| *304KV4153 | 1 | 320 389 3.3 3.3 | 0.31 | 3.2 | 2.1 | 103 | M257248DW-210-210D | |||
| *305KV4352 | 1 | 324 407 4.8 3.3 | 0.47 | 2.1 | 1.4 | 137 | M757449DW-410-410D | |||
| 310KV4301 | 1 | 327 403 2.5 2.5 | 0.34 | 2.9 | 2.0 | 135 | — | |||
| 310KV4501 | 1 | 336 | 427 3 3 | 0.39 | 2.6 | 1.7 | 117 | — | ||
| 310KV4601 | 1 | 329 | 426 | 4 1 | 0.41 | 2.4 | 1.6 | 186 | — | |
| *317KV4251 | 1 | 333 399 3.3 1.5 | 0.33 | 3.1 | 2.1 | 102 | LM258648DW-610-610D | |||
| *317KV4451 | 1 | 335 418 3.3 3.3 | 0.33 | 3.0 | 2.0 | 162 | HM259049D-010-010D | |||
| 320KV89 | 1 | 337 413 2.5 2.5 | 0.33 | 3.0 | 2.0 | 146 | — | |||
| 320KV4601 | 1 | 340 | 429 | 3 3 | 0.42 | 2.4 | 1.6 | 170 | — | |
| 320KV895 | 1 | 340 | 427 3 3 | 0.40 | 2.5 | 1.7 | 178 | — | ||
| 320KV80 | 1 | 346 | 448 | 3 3 | 0.39 | 2.6 | 1.7 | 156 | — | |
| 320KV4802 | 1 | 339 | 444 | 2 1 | 0.47 | 2.1 | 1.4 | 227 | — | |
| 320KV81 | 2 | 354 | 495 | 4 4 | 0.39 | 2.6 | 1.7 | 352 | — | |
| *327KV4851 | 1 | 347 447 3.3 1.5 | 0.39 | 2.6 | 1.7 | 185 | EE526129D- 190- 191D | |||
| 330KV4601 | 1 | 354 433 2.5 2.5 | 0.47 | 2.1 | 1.4 | 123 | — | |||
| *330KV5051 | 1 | 360 473 3.3 6.4 | 0.40 | 2.5 | 1.7 | 214 | — | |||
| *333KV4651 | 1 | 352 440 3.3 3.3 | 0.33 | 3.0 | 2.0 | 186 | HM261049DW-010-010D | |||
| *335KV4651 | 1 | 351 429 3.3 3.3 | 0.39 | 2.6 | 1.7 | 167 | — | |||
