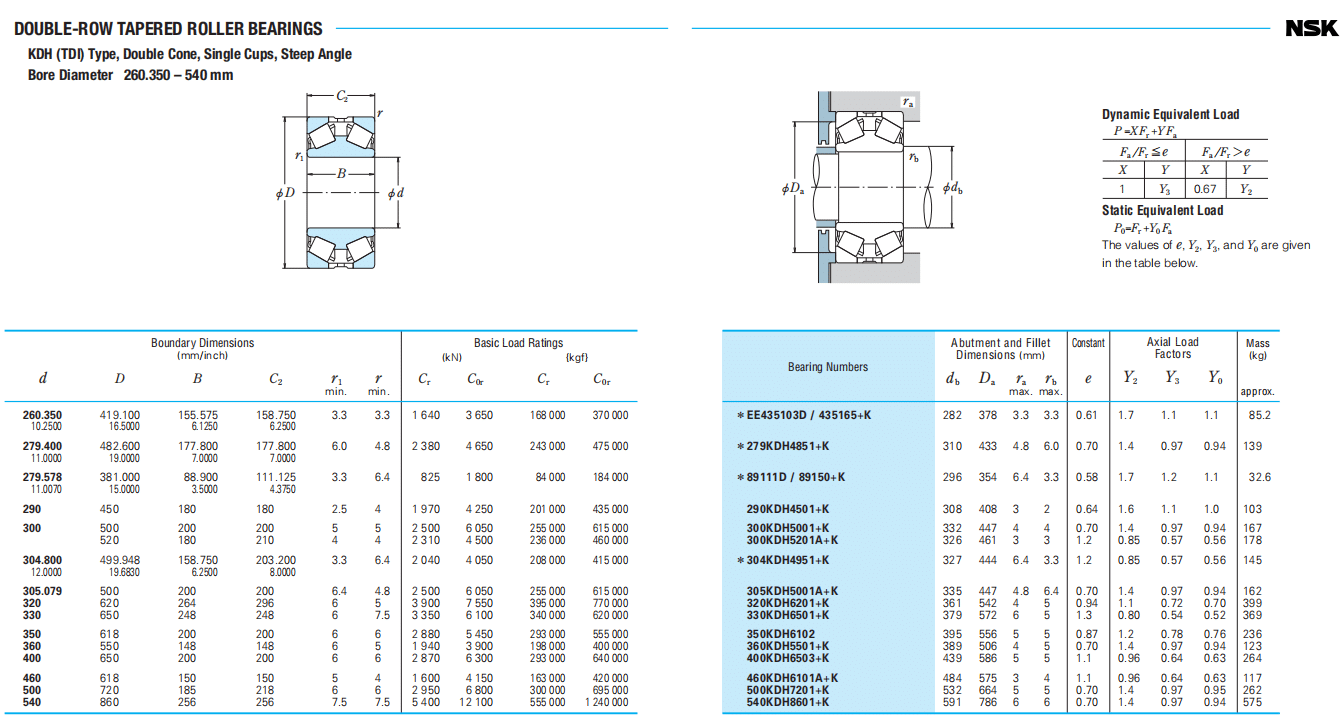

| Bearing Numbers | Abutment and Fillet Dimensions (mm) db Da ra rb max . max . | Constant e |
2 | Axial Load Factors 3 |
0 | Mass (kg) approx . | |||
| * EE435103D / 435165+K | 282 | 378 | 3.3 | 3.3 | 0.61 | 1.7 | 1.1 | 1.1 | 85.2 |
| * 279KDH4851+K | 310 | 433 | 4.8 | 6.0 | 0.70 | 1.4 | 0.97 | 0.94 | 139 |
| * 89111D / 89150+K | 296 | 354 | 6.4 | 3.3 | 0.58 | 1.7 | 1.2 | 1.1 | 32.6 |
| 290KDH4501+K | 308 | 408 | 3 | 2 | 0.64 | 1.6 | 1.1 | 1.0 | 103 |
| 300KDH5001 + K | 332 | 447 | 4 | 4 | 0.70 | 1.4 | 0.97 | 0.94 | 167 |
| 300KDH5201A +K | 326 | 461 | 3 | 3 | 1.2 | 0.85 | 0.57 | 0.56 | 178 |
| * 304KDH4951+K | 327 | 444 | 6.4 | 3.3 | 1.2 | 0.85 | 0.57 | 0.56 | 145 |
| 305KDH5001A + K | 335 | 447 | 4.8 | 6.4 | 0.70 | 1.4 | 0.97 | 0.94 | 162 |
| 320KDH6201 + K | 361 | 542 | 4 | 5 | 0.94 | 1.1 | 0.72 | 0.70 | 399 |
| 330KDH6501 +K | 379 | 572 | 6 | 5 | 1.3 | 0.80 | 0.54 | 0.52 | 369 |
| 350KDH6102 | 395 | 556 | 5 | 5 | 0.87 | 1.2 | 0.78 | 0.76 | 236 |
| 360KDH5501 + K | 389 | 506 | 4 | 5 | 0.70 | 1.4 | 0.97 | 0.94 | 123 |
| 400KDH6503 +K | 439 | 586 | 5 | 5 | 1.1 | 0.96 | 0.64 | 0.63 | 264 |
| 460KDH6101A + K | 484 | 575 | 3 | 4 | 1.1 | 0.96 | 0.64 | 0.63 | 117 |
| 500KDH7201 + K | 532 | 664 | 5 | 5 | 0.70 | 1.4 | 0.97 | 0.95 | 262 |
| 540KDH8601 +K | 591 | 786 | 6 | 6 | 0.70 | 1.4 | 0.97 | 0.94 | 575 |
