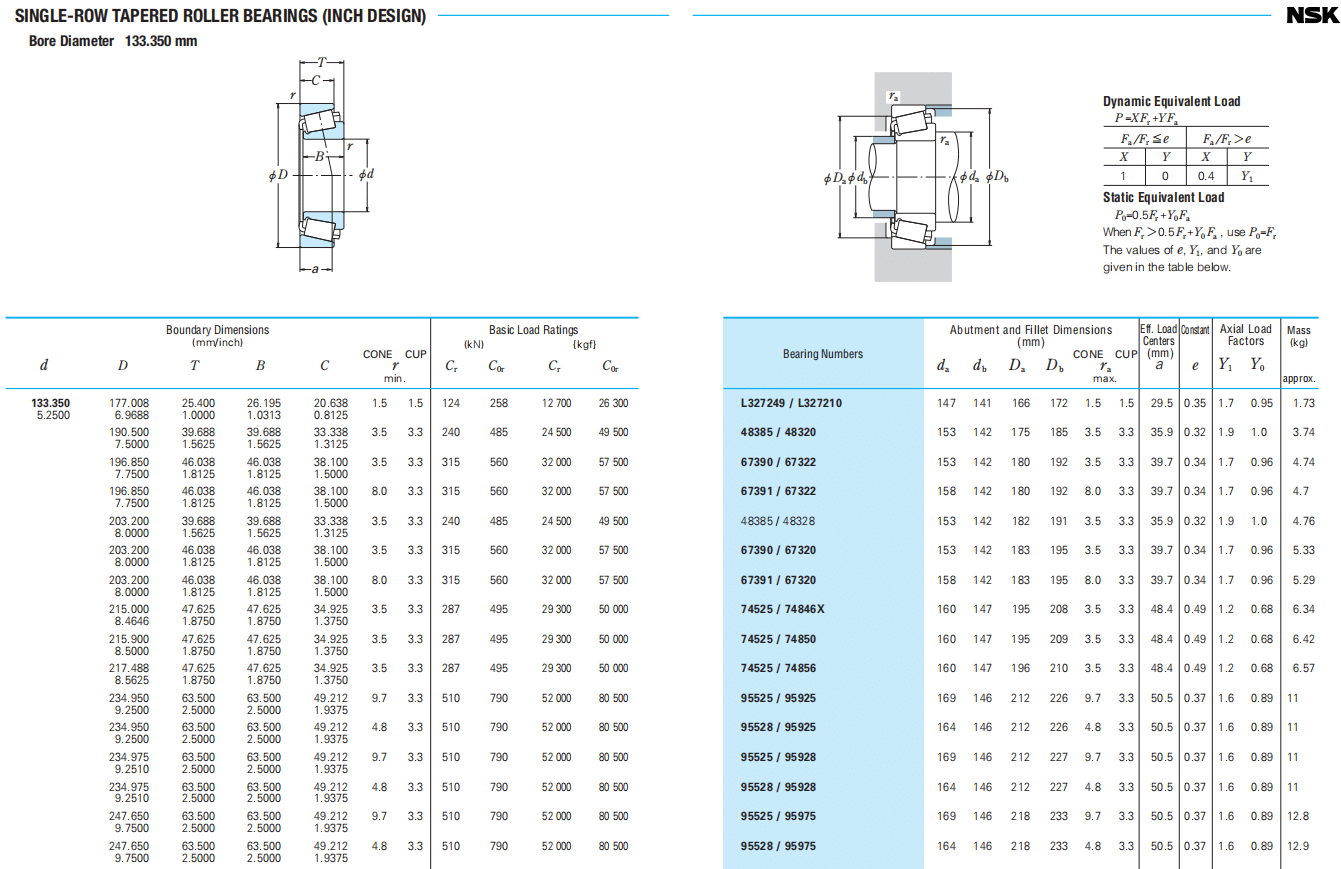

Bearing Numbers | Abutment and Fillet Dimensions (mm) CONE CUP | Eff. Load Centers (mm) | Constant e | Axial Load Factors Y1 Y0 | Mass (kg) approx. | ||||||
L327249 / L327210 | 147 | 141 | 166 | 172 | 1.5 | 1.5 | 29.5 | 0.35 | 1.7 | 0.95 | 1.73 |
48385 / 48320 | 153 | 142 | 175 | 185 | 3.5 | 3.3 | 35.9 | 0.32 | 1.9 | 1.0 | 3.74 |
67390 / 67322 | 153 | 142 | 180 | 192 | 3.5 | 3.3 | 39.7 | 0.34 | 1.7 | 0.96 | 4.74 |
67391 / 67322 | 158 | 142 | 180 | 192 | 8.0 | 3.3 | 39.7 | 0.34 | 1.7 | 0.96 | 4.7 |
48385 / 48328 | 153 | 142 | 182 | 191 | 3.5 | 3.3 | 35.9 | 0.32 | 1.9 | 1.0 | 4.76 |
67390 / 67320 | 153 | 142 | 183 | 195 | 3.5 | 3.3 | 39.7 | 0.34 | 1.7 | 0.96 | 5.33 |
67391 / 67320 | 158 | 142 | 183 | 195 | 8.0 | 3.3 | 39.7 | 0.34 | 1.7 | 0.96 | 5.29 |
74525 / 74846X | 160 | 147 | 195 | 208 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 6.34 |
74525 / 74850 | 160 | 147 | 195 | 209 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 6.42 |
74525 / 74856 | 160 | 147 | 196 | 210 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 6.57 |
95525 / 95925 | 169 | 146 | 212 | 226 | 9.7 | 3.3 | 50.5 | 0.37 | 1.6 | 0.89 | 11 |
95528 / 95925 | 164 | 146 | 212 | 226 | 4.8 | 3.3 | 50.5 | 0.37 | 1.6 | 0.89 | 11 |
95525 / 95928 | 169 | 146 | 212 | 227 | 9.7 | 3.3 | 50.5 | 0.37 | 1.6 | 0.89 | 11 |
95528 / 95928 | 164 | 146 | 212 | 227 | 4.8 | 3.3 | 50.5 | 0.37 | 1.6 | 0.89 | 11 |
95525 / 95975 | 169 | 146 | 218 | 233 | 9.7 | 3.3 | 50.5 | 0.37 | 1.6 | 0.89 | 12.8 |
95528 / 95975 | 164 | 146 | 218 | 233 | 4.8 | 3.3 | 50.5 | 0.37 | 1.6 | 0.89 | 12.9 |
