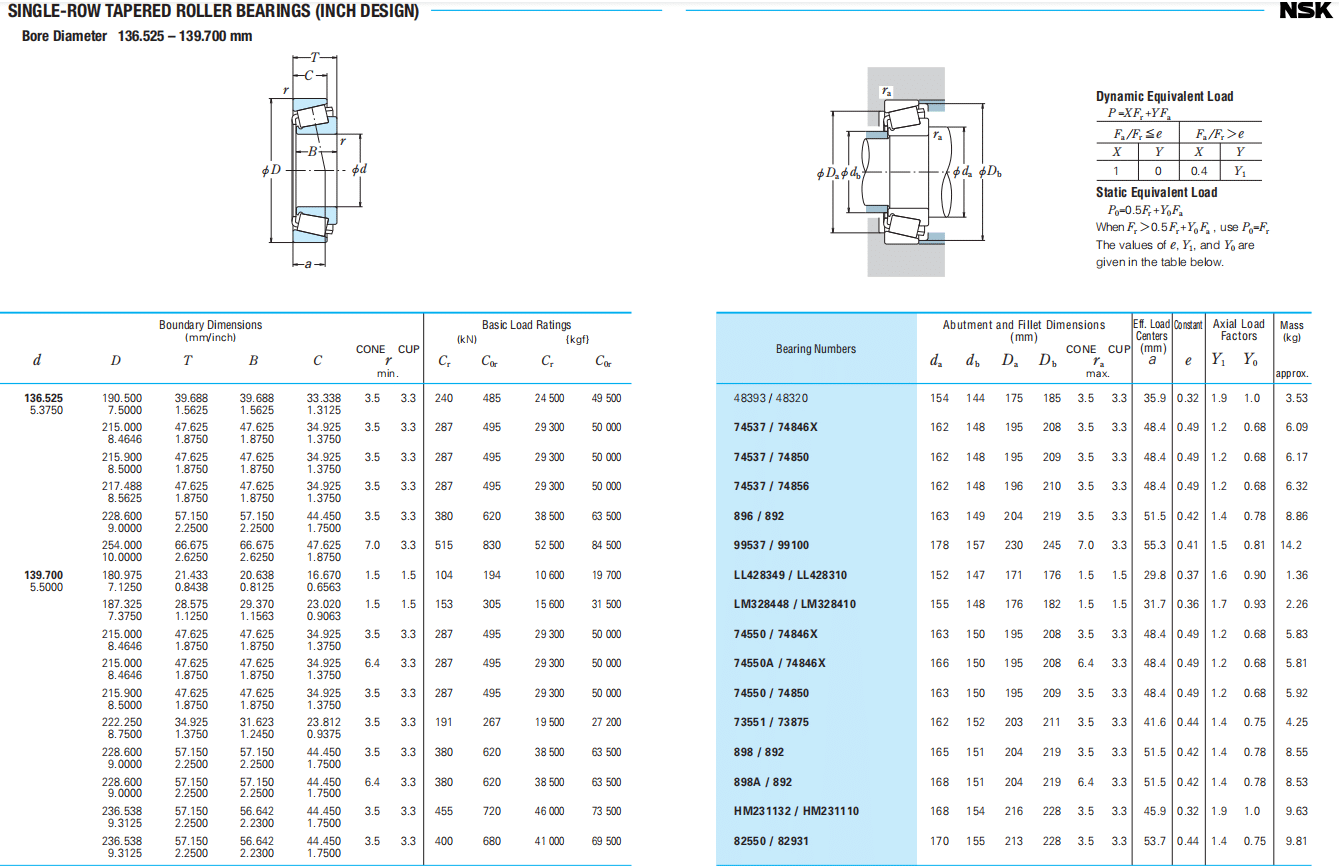

| Bearing Numbers | Abutment and Fillet Dimensions (mm) CONE CUP | Eff. Load Centers (mm) | Constant e | Axial Load Factors Y1 Y0 | Mass (kg) approx. | ||||||
| 48393 / 48320 | 154 | 144 | 175 | 185 | 3.5 | 3.3 | 35.9 | 0.32 | 1.9 | 1.0 | 3.53 |
| 74537 / 74846X | 162 | 148 | 195 | 208 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 6.09 |
| 74537 / 74850 | 162 | 148 | 195 | 209 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 6.17 |
| 74537 / 74856 | 162 | 148 | 196 | 210 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 6.32 |
| 896 / 892 | 163 | 149 | 204 | 219 | 3.5 | 3.3 | 51.5 | 0.42 | 1.4 | 0.78 | 8.86 |
| 99537 / 99100 | 178 | 157 | 230 | 245 | 7.0 | 3.3 | 55.3 | 0.41 | 1.5 | 0.81 | 14.2 |
| LL428349 / LL428310 | 152 | 147 | 171 | 176 | 1.5 | 1.5 | 29.8 | 0.37 | 1.6 | 0.90 | 1.36 |
| LM328448 / LM328410 | 155 | 148 | 176 | 182 | 1.5 | 1.5 | 31.7 | 0.36 | 1.7 | 0.93 | 2.26 |
| 74550 / 74846X | 163 | 150 | 195 | 208 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 5.83 |
| 74550A / 74846X | 166 | 150 | 195 | 208 | 6.4 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 5.81 |
| 74550 / 74850 | 163 | 150 | 195 | 209 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 5.92 |
| 73551 / 73875 | 162 | 152 | 203 | 211 | 3.5 | 3.3 | 41.6 | 0.44 | 1.4 | 0.75 | 4.25 |
| 898 / 892 | 165 | 151 | 204 | 219 | 3.5 | 3.3 | 51.5 | 0.42 | 1.4 | 0.78 | 8.55 |
| 898A / 892 | 168 | 151 | 204 | 219 | 6.4 | 3.3 | 51.5 | 0.42 | 1.4 | 0.78 | 8.53 |
| HM231132 / HM231110 | 168 | 154 | 216 | 228 | 3.5 | 3.3 | 45.9 | 0.32 | 1.9 | 1.0 | 9.63 |
| 82550 / 82931 | 170 | 155 | 213 | 228 | 3.5 | 3.3 | 53.7 | 0.44 | 1.4 | 0.75 | 9.81 |
