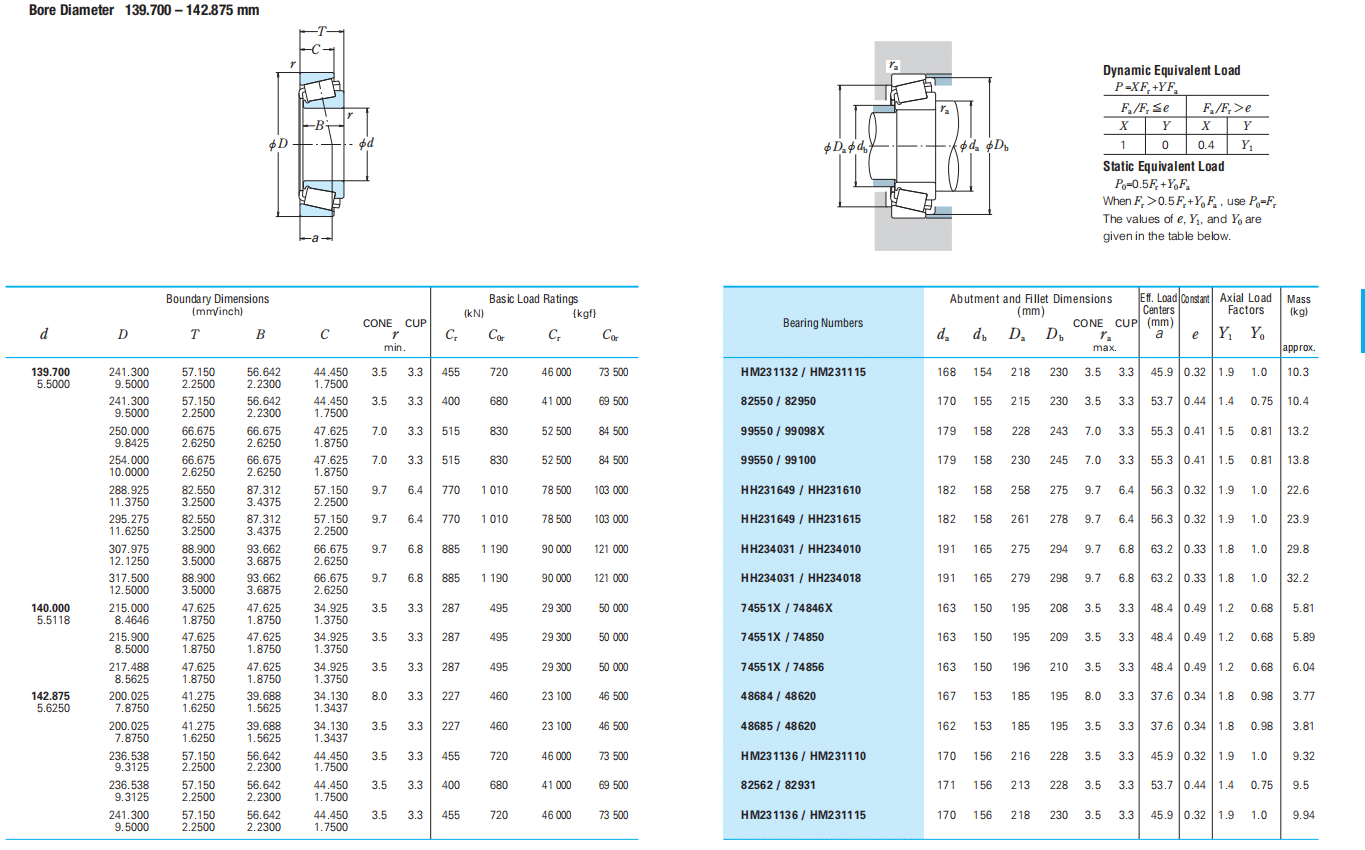

| Bearing Numbers | Abutment and Fillet Dimensions (mm) CONE CUP | Eff. Load Centers (mm) | Constant e | Axial Load Factors Y1 Y0 | Mass (kg) approx. | ||||||
| HM231132 / HM231115 | 168 | 154 | 218 | 230 | 3.5 | 3.3 | 45.9 | 0.32 | 1.9 | 1.0 | 10.3 |
| 82550 / 82950 | 170 | 155 | 215 | 230 | 3.5 | 3.3 | 53.7 | 0.44 | 1.4 | 0.75 | 10.4 |
| 99550 / 99098X | 179 | 158 | 228 | 243 | 7.0 | 3.3 | 55.3 | 0.41 | 1.5 | 0.81 | 13.2 |
| 99550 / 99100 | 179 | 158 | 230 | 245 | 7.0 | 3.3 | 55.3 | 0.41 | 1.5 | 0.81 | 13.8 |
| HH231649 / HH231610 | 182 | 158 | 258 | 275 | 9.7 | 6.4 | 56.3 | 0.32 | 1.9 | 1.0 | 22.6 |
| HH231649 / HH231615 | 182 | 158 | 261 | 278 | 9.7 | 6.4 | 56.3 | 0.32 | 1.9 | 1.0 | 23.9 |
| HH234031 / HH234010 | 191 | 165 | 275 | 294 | 9.7 | 6.8 | 63.2 | 0.33 | 1.8 | 1.0 | 29.8 |
| HH234031 / HH234018 | 191 | 165 | 279 | 298 | 9.7 | 6.8 | 63.2 | 0.33 | 1.8 | 1.0 | 32.2 |
| 74551X / 74846X | 163 | 150 | 195 | 208 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 5.81 |
| 74551X / 74850 | 163 | 150 | 195 | 209 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 5.89 |
| 74551X / 74856 | 163 | 150 | 196 | 210 | 3.5 | 3.3 | 48.4 | 0.49 | 1.2 | 0.68 | 6.04 |
| 48684 / 48620 | 167 | 153 | 185 | 195 | 8.0 | 3.3 | 37.6 | 0.34 | 1.8 | 0.98 | 3.77 |
| 48685 / 48620 | 162 | 153 | 185 | 195 | 3.5 | 3.3 | 37.6 | 0.34 | 1.8 | 0.98 | 3.81 |
| HM231136 / HM231110 | 170 | 156 | 216 | 228 | 3.5 | 3.3 | 45.9 | 0.32 | 1.9 | 1.0 | 9.32 |
| 82562 / 82931 | 171 | 156 | 213 | 228 | 3.5 | 3.3 | 53.7 | 0.44 | 1.4 | 0.75 | 9.5 |
| HM231136 / HM231115 | 170 | 156 | 218 | 230 | 3.5 | 3.3 | 45.9 | 0.32 | 1.9 | 1.0 | 9.94 |
