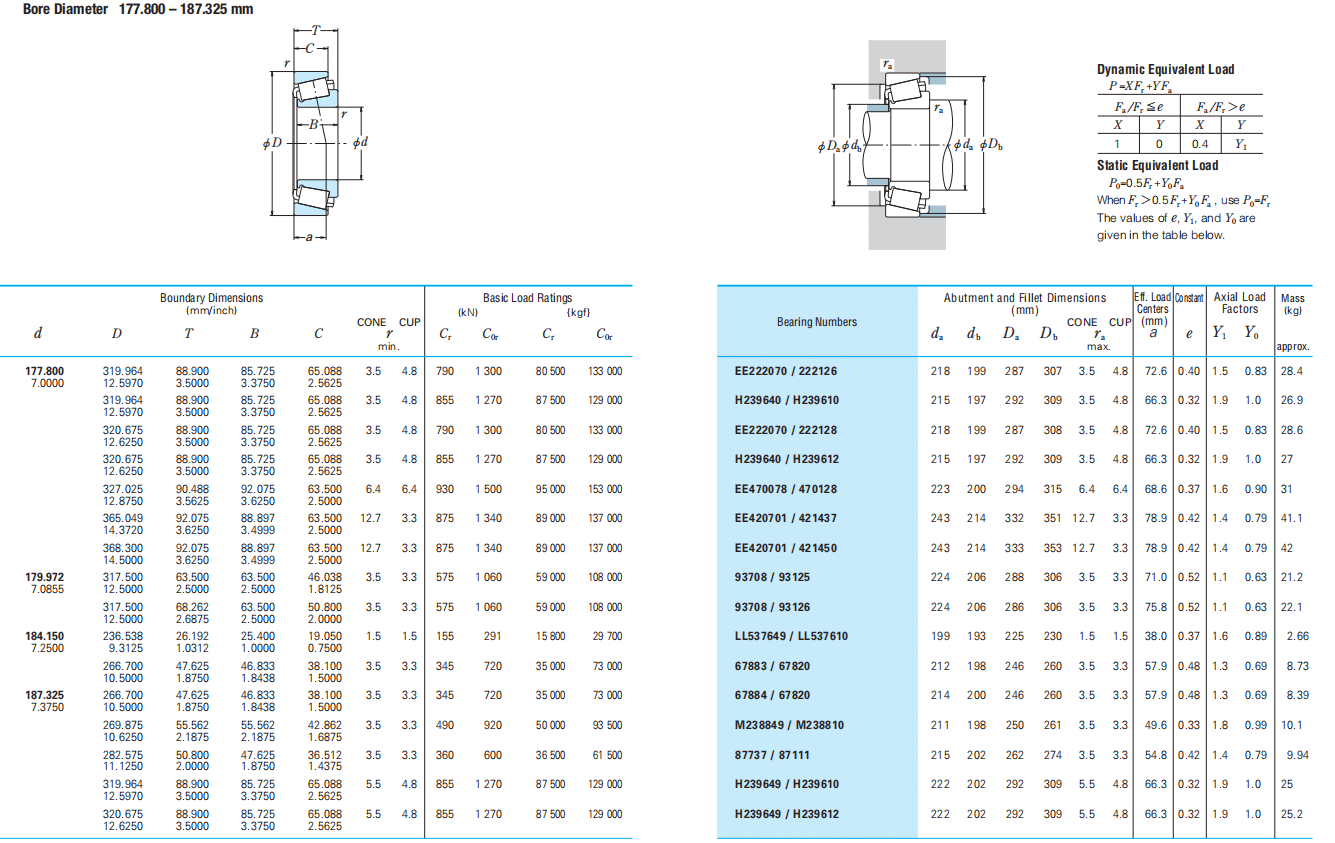

| Bearing Numbers | Abutment and Fillet Dimensions
(mm) CONE CUP |
Eff. Load
Centers (mm) |
Constant
e |
Axial Load Factors
Y1 Y0 |
Mass
(kg) approx. |
||||||
| EE222070 / 222126 | 218 | 199 | 287 | 307 | 3.5 | 4.8 | 72.6 | 0.40 | 1.5 | 0.83 | 28.4 |
| H239640 / H239610 | 215 | 197 | 292 | 309 | 3.5 | 4.8 | 66.3 | 0.32 | 1.9 | 1.0 | 26.9 |
| EE222070 / 222128 | 218 | 199 | 287 | 308 | 3.5 | 4.8 | 72.6 | 0.40 | 1.5 | 0.83 | 28.6 |
| H239640 / H239612 | 215 | 197 | 292 | 309 | 3.5 | 4.8 | 66.3 | 0.32 | 1.9 | 1.0 | 27 |
| EE470078 / 470128 | 223 | 200 | 294 | 315 | 6.4 | 6.4 | 68.6 | 0.37 | 1.6 | 0.90 | 31 |
| EE420701 / 421437 | 243 | 214 | 332 | 351 | 12.7 | 3.3 | 78.9 | 0.42 | 1.4 | 0.79 | 41.1 |
| EE420701 / 421450 | 243 | 214 | 333 | 353 | 12.7 | 3.3 | 78.9 | 0.42 | 1.4 | 0.79 | 42 |
| 93708 / 93125 | 224 | 206 | 288 | 306 | 3.5 | 3.3 | 71.0 | 0.52 | 1.1 | 0.63 | 21.2 |
| 93708 / 93126 | 224 | 206 | 286 | 306 | 3.5 | 3.3 | 75.8 | 0.52 | 1.1 | 0.63 | 22.1 |
| LL537649 / LL537610 | 199 | 193 | 225 | 230 | 1.5 | 1.5 | 38.0 | 0.37 | 1.6 | 0.89 | 2.66 |
| 67883 / 67820 | 212 | 198 | 246 | 260 | 3.5 | 3.3 | 57.9 | 0.48 | 1.3 | 0.69 | 8.73 |
| 67884 / 67820 | 214 | 200 | 246 | 260 | 3.5 | 3.3 | 57.9 | 0.48 | 1.3 | 0.69 | 8.39 |
| M238849 / M238810 | 211 | 198 | 250 | 261 | 3.5 | 3.3 | 49.6 | 0.33 | 1.8 | 0.99 | 10.1 |
| 87737 / 87111 | 215 | 202 | 262 | 274 | 3.5 | 3.3 | 54.8 | 0.42 | 1.4 | 0.79 | 9.94 |
| H239649 / H239610 | 222 | 202 | 292 | 309 | 5.5 | 4.8 | 66.3 | 0.32 | 1.9 | 1.0 | 25 |
| H239649 / H239612 | 222 | 202 | 292 | 309 | 5.5 | 4.8 | 66.3 | 0.32 | 1.9 | 1.0 | 25.2 |
