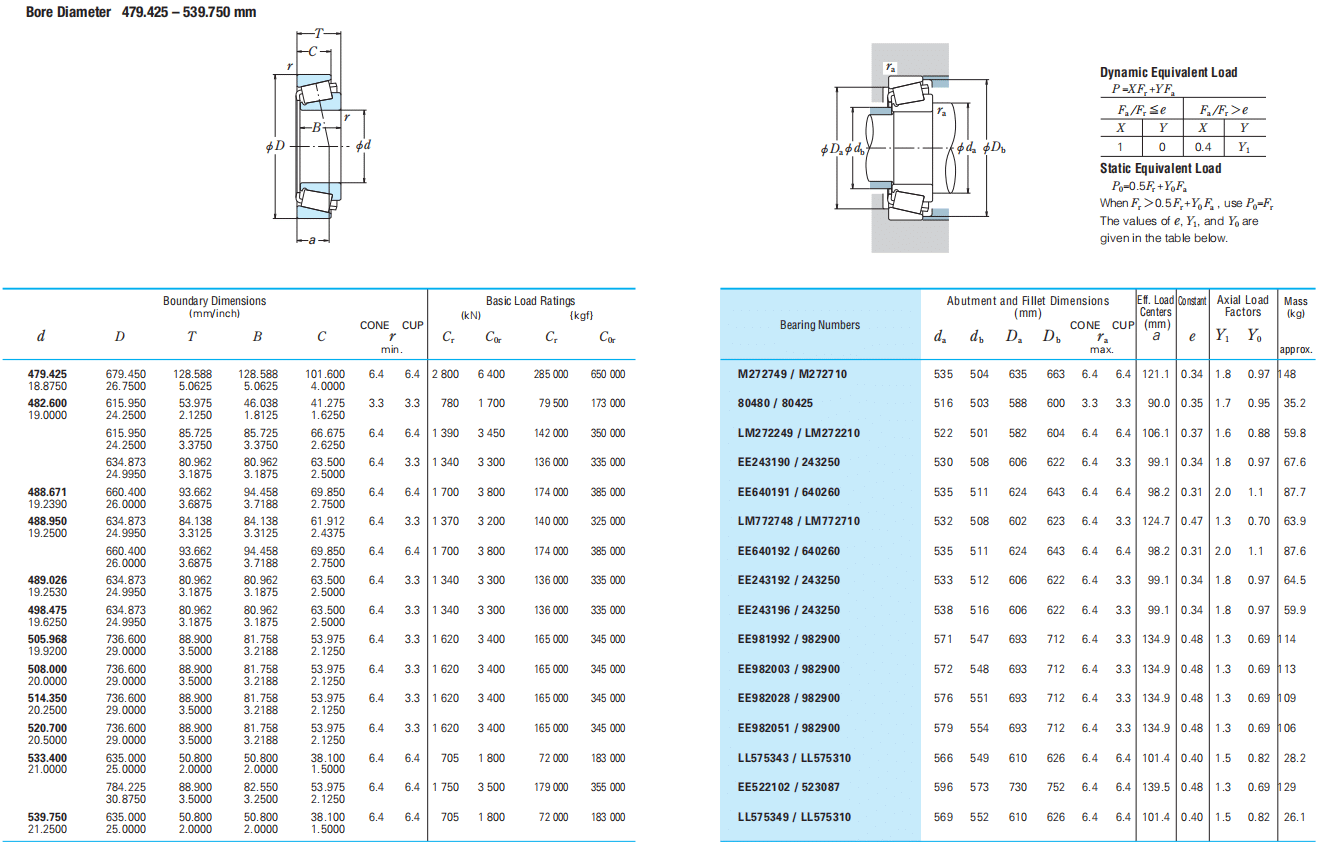

| Bearing Numbers | Abutment and Fillet Dimensions (mm) CONE CUP | Eff. Load Centers (mm) | Constant e | Axial Load Factors Y1 Y0 | Mass (kg) approx. | ||||||
| M272749 / M272710 | 535 | 504 | 635 | 663 | 6.4 | 6.4 | 121.1 | 0.34 | 1.8 | 0.97 | 148 |
| 80480 / 80425 | 516 | 503 | 588 | 600 | 3.3 | 3.3 | 90.0 | 0.35 | 1.7 | 0.95 | 35.2 |
| LM272249 / LM272210 | 522 | 501 | 582 | 604 | 6.4 | 6.4 | 106.1 | 0.37 | 1.6 | 0.88 | 59.8 |
| EE243190 / 243250 | 530 | 508 | 606 | 622 | 6.4 | 3.3 | 99.1 | 0.34 | 1.8 | 0.97 | 67.6 |
| EE640191 / 640260 | 535 | 511 | 624 | 643 | 6.4 | 6.4 | 98.2 | 0.31 | 2.0 | 1.1 | 87.7 |
| LM772748 / LM772710 | 532 | 508 | 602 | 623 | 6.4 | 3.3 | 124.7 | 0.47 | 1.3 | 0.70 | 63.9 |
| EE640192 / 640260 | 535 | 511 | 624 | 643 | 6.4 | 6.4 | 98.2 | 0.31 | 2.0 | 1.1 | 87.6 |
| EE243192 / 243250 | 533 | 512 | 606 | 622 | 6.4 | 3.3 | 99.1 | 0.34 | 1.8 | 0.97 | 64.5 |
| EE243196 / 243250 | 538 | 516 | 606 | 622 | 6.4 | 3.3 | 99.1 | 0.34 | 1.8 | 0.97 | 59.9 |
| EE981992 / 982900 | 571 | 547 | 693 | 712 | 6.4 | 3.3 | 134.9 | 0.48 | 1.3 | 0.69 | 114 |
| EE982003 / 982900 | 572 | 548 | 693 | 712 | 6.4 | 3.3 | 134.9 | 0.48 | 1.3 | 0.69 | 113 |
| EE982028 / 982900 | 576 | 551 | 693 | 712 | 6.4 | 3.3 | 134.9 | 0.48 | 1.3 | 0.69 | 109 |
| EE982051 / 982900 | 579 | 554 | 693 | 712 | 6.4 | 3.3 | 134.9 | 0.48 | 1.3 | 0.69 | 106 |
| LL575343 / LL575310 | 566 | 549 | 610 | 626 | 6.4 | 6.4 | 101.4 | 0.40 | 1.5 | 0.82 | 28.2 |
| EE522102 / 523087 | 596 | 573 | 730 | 752 | 6.4 | 6.4 | 139.5 | 0.48 | 1.3 | 0.69 | 129 |
| LL575349 / LL575310 | 569 | 552 | 610 | 626 | 6.4 | 6.4 | 101.4 | 0.40 | 1.5 | 0.82 | 26.1 |
