NSK BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

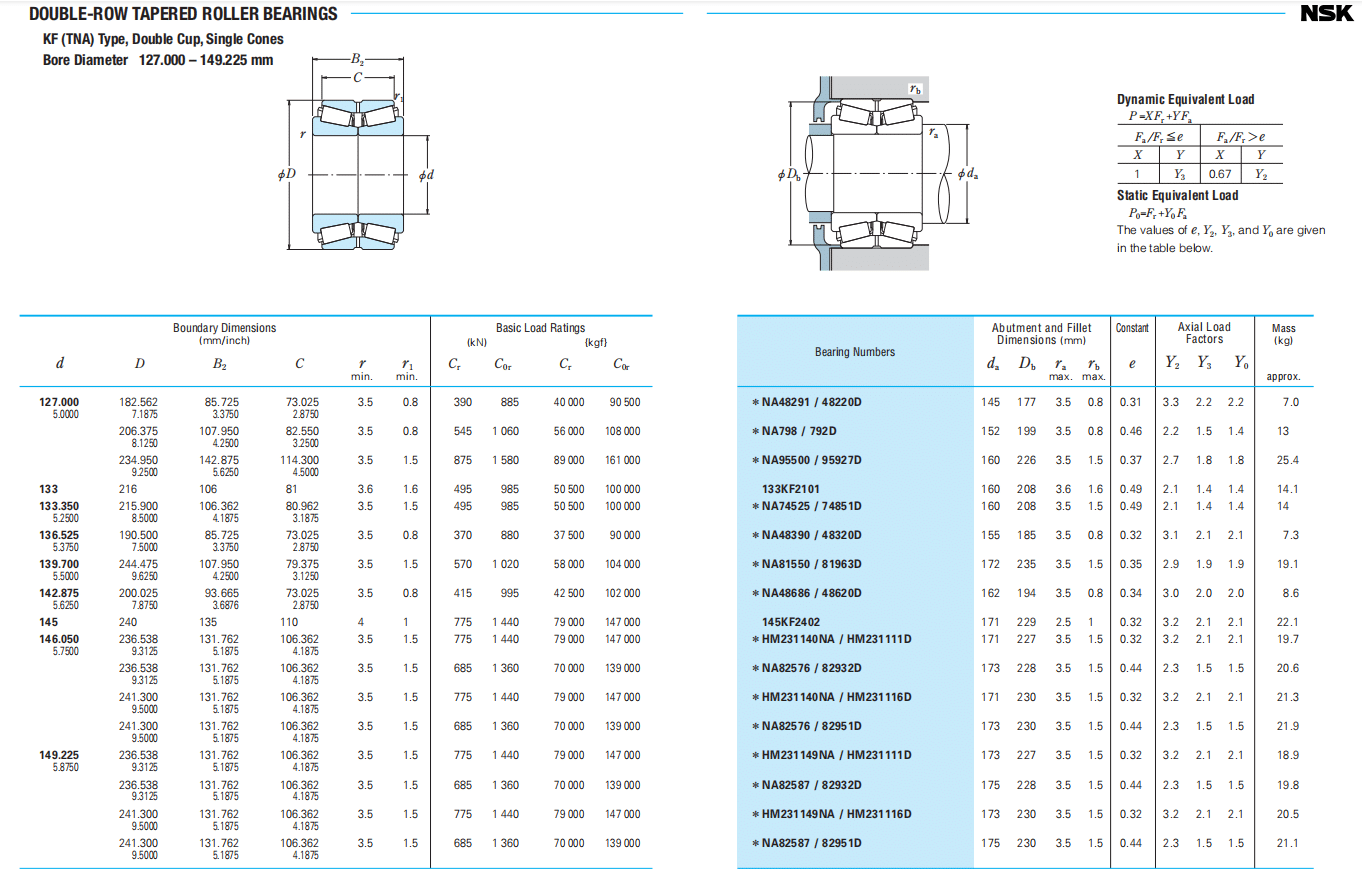

| Bearing Numbers | Abutment and Fillet Dimensions (mm) da Db ra rb max . max . | Constant e | Axial Load Factors Y2 Y3 Y0 | Mass (kg) approx . |
| * NA48291 / 48220D | 145 177 3.5 0.8 | 0.31 | 3.3 2.2 2.2 | 7.0 |
| * NA798 / 792D | 152 199 3.5 0.8 | 0.46 | 2.2 1.5 1.4 | 13 |
| * NA95500 / 95927D | 160 226 3.5 1.5 | 0.37 | 2.7 1.8 1.8 | 25.4 |
| 133KF2101 | 160 208 3.6 1.6 | 0.49 | 2.1 1.4 1.4 | 14.1 |
| * NA74525 / 74851D | 160 208 3.5 1.5 | 0.49 | 2.1 1.4 1.4 | 14 |
| * NA48390 / 48320D | 155 185 3.5 0.8 | 0.32 | 3.1 2.1 2.1 | 7.3 |
| * NA81550 / 81963D | 172 235 3.5 1.5 | 0.35 | 2.9 1.9 1.9 | 19.1 |
| * NA48686 / 48620D | 162 194 3.5 0.8 | 0.34 | 3.0 2.0 2.0 | 8.6 |
| 145KF2402 | 171 229 2.5 1 | 0.32 | 3.2 2.1 2.1 | 22.1 |
| * HM231140NA / HM231111D | 171 227 3.5 1.5 | 0.32 | 3.2 2.1 2.1 | 19.7 |
| * NA82576 / 82932D | 173 228 3.5 1.5 | 0.44 | 2.3 1.5 1.5 | 20.6 |
| * HM231140NA / HM231116D | 171 230 3.5 1.5 | 0.32 | 3.2 2.1 2.1 | 21.3 |
| * NA82576 / 82951D | 173 230 3.5 1.5 | 0.44 | 2.3 1.5 1.5 | 21.9 |
| * HM231149NA / HM231111D | 173 227 3.5 1.5 | 0.32 | 3.2 2.1 2.1 | 18.9 |
| * NA82587 / 82932D | 175 228 3.5 1.5 | 0.44 | 2.3 1.5 1.5 | 19.8 |
| * HM231149NA / HM231116D | 173 230 3.5 1.5 | 0.32 | 3.2 2.1 2.1 | 20.5 |
| * NA82587 / 82951D | 175 230 3.5 1.5 | 0.44 | 2.3 1.5 1.5 | 21.1 |
