SKF Bearing 61810-2RZ

SKF Bearing , SKF Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.

The SKF bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the SKF Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.

SKF BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

SKF Deep groove ball bearings

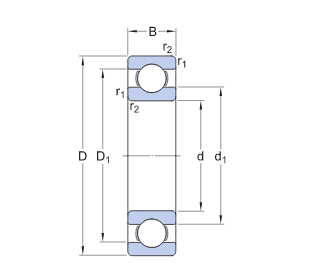

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C₀[kN]	[r/min]	[r/min]
61810-2RS1	50	65	7	6.76	6.8		6 000
61810-2RZ	50	65	7	6.76	6.8	20 000	10 000
61811	55	72	9	9.04	8.8	19 000	12 000
61811-2RS1	55	72	9	9.04	8.8		5 300
61811-2RZ	55	72	9	9.04	8.8	19 000	9 500
61812	60	78	10	11.9	11.4	17 000	11 000
61812-2RS1	60	78	10	11.9	11.4		4 800
61812-2RZ	60	78	10	11.9	11.4	17 000	8 500
61813	65	85	10	12.4	12.7	16 000	10 000
61813-2RS1	65	85	10	12.4	12.7		4 500
61813-2RZ	65	85	10	12.4	12.7	16 000	8 000
61814	70	90	10	12.4	13.2	15 000	9 000
61814-2RS1	70	90	10	12.4	13.2		4 300
61814-2RZ	70	90	10	12.4	13.2	15 000	7 500
61815	75	95	10	12.5	10.8	14 000	8 500
61815-2RS1	75	95	10	12.5	10.8		4 000
61815-2RZ	75	95	10	12.5	10.8	14 000	7 000
61816	80	100	10	12.7	11.2	13 000	8 000
61816-2RS1	80	100	10	12.7	11.2		3 600
61816-2RZ	80	100	10	12.7	11.2	13 000	6 300
61817	85	110	13	19.5	16.6	12 000	7 500
61817-2RS1	85	110	13	19.5	16.6		3 400
61817-2RZ	85	110	13	19.5	16.6	12 000	6 000
61818	90	115	13	19.5	17	11 000	7 000
61818-2RS1	90	115	13	19.5	17		3 200
61818-2RZ	90	115	13	19.5	17	11 000	5 600
61819	95	120	13	19.9	17.6	11 000	6 700
61819-2RS1	95	120	13	19.9	17.6		3 000
61820	100	125	13	17.8	18.3	10 000	6 300
61820-2RS1	100	125	13	17.8	18.3		3 000
