SKF Bearing NU210ECM/C3VL0241

INSOCOAT bearings are designed to prevent electric current from passing through the bearing. The external surfaces of either their inner or outer ring are coated with an insulating aluminium oxide layer, by applying a sophisticated plasma-spray process for an outstanding quality finish. The solutions are very cost-effective compared with other insulation methods.

SKF BEARINGS various selection , welcome inquiry online or email me directly to : info@cmtgbearing.com.

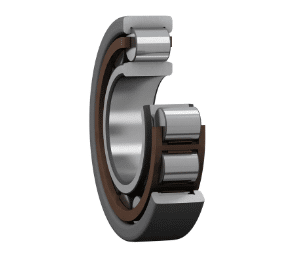

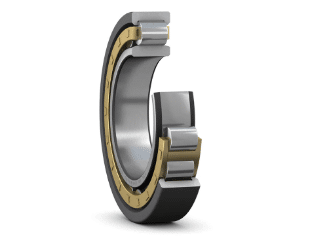

SKF INSOCOAT cylindrical roller bearings, single row

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
NU 1010 ECP/C3VL0241	50	80	16	46.8	56	9 500	9 500
NU 210 ECM/C3VL0241	50	90	20	73.5	69.5	8 500	9 000
NU 310 ECM/C3VL0241	50	110	27	127	112	6 700	8 000
NU 1011 ECML/C3VL0241	55	90	18	57.2	69.5	8 500	13 000
NU 1011 ECP/C3VL0241	55	90	18	57.2	69.5	8 500	8 500
NU 211 ECM/C3VL0241	55	100	21	96.5	95	7 500	8 000
NU 311 ECM/C3VL0241	55	120	29	156	143	6 000	7 000
NU 1012 ECP/C3VL0241	60	95	18	58.3	73.5	8 000	8 000
NU 1012 ML/C3VL0241	60	95	18	37.4	44	8 000	13 000
NU 212 ECM/C3VL0241	60	110	22	108	102	6 700	7 500
NU 312 ECM/C3VL0241	60	130	31	173	160	5 600	6 700
NU 1013 ECP/C3VL0241	65	100	18	62.7	81.5	7 500	7 500
NU 213 ECM/C3VL0241	65	120	23	122	118	6 300	6 700
NU 313 ECM/C3VL0241	65	140	33	212	196	5 300	6 000
NU 1014 ECM/C3VL0241	70	110	20	76.5	93	7 000	7 000
NU 1014 ECP/C3VL0241	70	110	20	76.5	93	7 000	7 000
NU 214 ECM/C3VL0241	70	125	24	137	137	6 000	6 300
NU 314 ECM/C3VL0241	70	150	35	236	228	4 800	5 600
NU 1015 M/C3VL0241	75	115	20	58.3	71	6 700	6 700
NU 215 ECM/C3VL0241	75	130	25	150	156	5 600	6 000
NU 315 ECM/C3VL0241	75	160	37	280	265	4 500	5 300
NU 315 ECP/VL0241	75	160	37	280	265	4 500	5 300
NU 1016 ECM/C3VL0241	80	125	22	99	127	6 000	6 000
NU 216 ECM/C3VL0241	80	140	26	160	166	5 300	5 600
NU 316 ECM/C3VL0241	80	170	39	300	290	4 300	5 000
NU 1017 M/C3VL0241	85	130	22	68.2	86.5	6 000	6 000
NU 217 ECM/C3VL0241	85	150	28	190	200	4 800	5 300
NU 317 ECM/C3VL0241	85	180	41	340	335	4 000	4 800
NU 1018 M/C3VL0241	90	140	24	80.9	104	5 600	5 600
NU 218 ECM/C3VL0241	90	160	30	208	220	4 500	5 000
